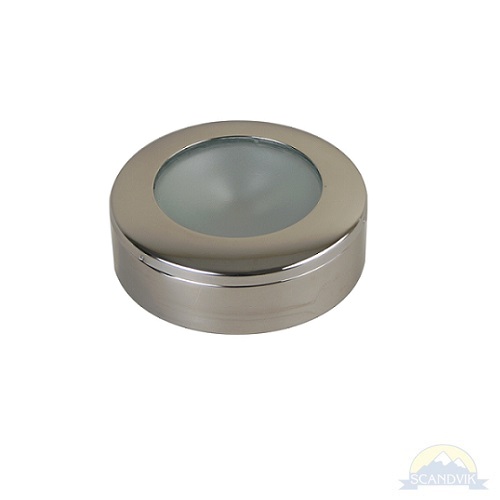

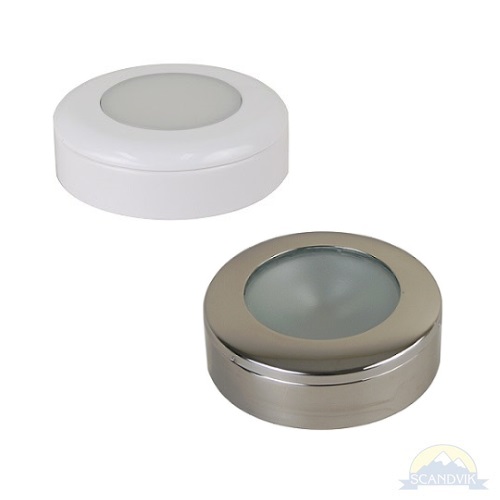

Scandvik’s A3 Surface Mounted LED Down Lights are offered as single or dual-color lighting and can be dimmed when paired with our Tortuga PWM dimmer (Part #41598P). The A3 Surface Mount series features a snap over bezel in Polished 316 stainless steel or White and a surface mount collar in matching color.  A3 mounts securely overhead using two screws.  Single color lights are two wire (positive/negative) connection and work with a common switch (on-off).  Dual-color lights are three wire connection (positive lead for each color and a common negative) and require a 3-way switch (on-off-on).  A3’s are a good choice for general overhead lighting on smaller boats or as undercabinet lighting for any size vessel.  Other applications include hard tops, arches, walkway overhangs, shower stalls or any area that lacks depth to recess mount a fixture.

WARM WHITE LEDs:
6 x 0.5 Watt Warm White LED
242 Lumens
2.2 Watt
12 Volt
Amps: 0.18@12V
IP67

SURFACE MOUNT:

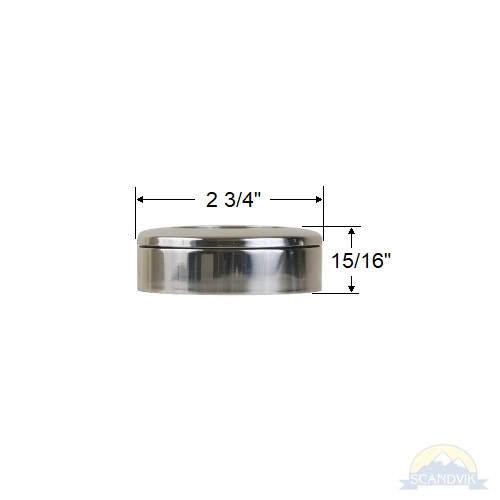

#41373P 316 Stainless Steel Trim

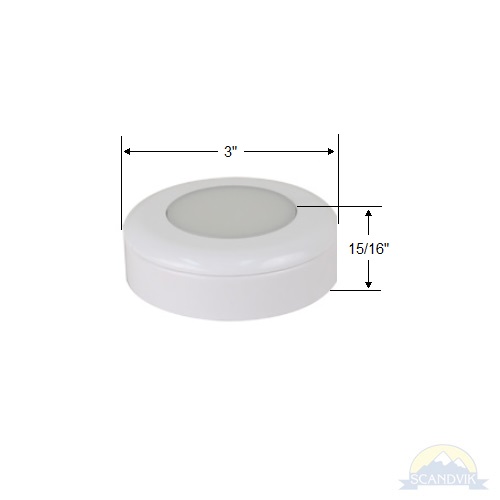

#41317P White Trim Ring

-------------------------------------------------

COOL WHITE LEDs:
6 x 0.5 Watt Cool White LED
170 Lumens
2.2 Watt
12 Volt
Amps: 0.18@12V
IP67

SURFACE MOUNT:
#41423P White Trim Ring

-------------------------------------------------

DUAL COLOR WARM WHITE/BLUE:
6 x Warm White LED
6 x TOP Blue LED
12 Volt - (White 2.2 Watt) (Blue 0.45 Watt)
Amps: 0.18@12V (Warm White), 0.0358@12V (Blue)
3-Wire
IP67

SURFACE MOUNT:
#41378P 316 Stainless Steel Trim Ring
#41380P White Trim Ring

-------------------------------------------------

DUAL COLOR WARM WHITE/RED:
6 x Warm White LED
6 x TOP Red LED
12 Volt - (White 2.2 Watt) (Red 0.45 Watt)
Amps: 0.18@12V (Warm White), 0.04@12V (Red)
3-Wire
IP67

SURFACE MOUNT:
#41387P 316 Stainless Steel Trim Ring
