Scandvik’s A3 LED Down Light is offered as single or dual-color lighting and can be dimmed when paired with our Tortuga PWM dimmer (Part #41598P). The A3 series features a snap over bezel in Polished 316 stainless steel, White or Black polycarbonate. A3 mounts securely overhead using just two flathead screws (included). Single color lights are two wire (positive/negative) connection and work with a common switch (on-off). Dual-color lights are three wire connection (positive lead for each color and a common negative) and require a 3-way switch (on-off-on). A3’s are a good choice for general overhead lighting on smaller boats or as undercabinet lighting for any size vessel. Other applications include hard tops, arches, walkway overhangs, and shower stalls.
WARM WHITE LEDs:
6 x 0.5 Watt Warm White LED
170 Lumens
12 Volt - 2.2 Watt
Amps: 0.183@12V
IP67

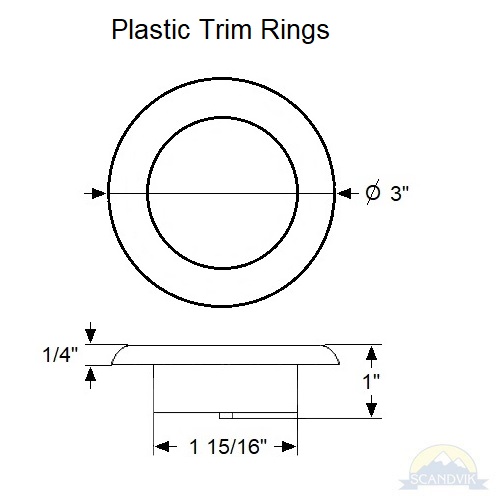

FLUSH / RECESSED MOUNT:

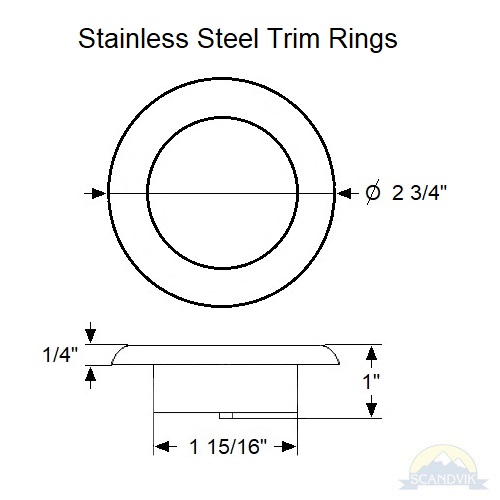

#41368P 316 Stainless Steel Trim Ring
#41379P White Trim Ring

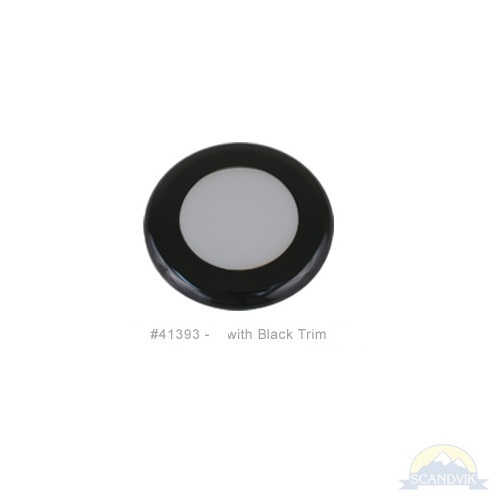

#41393P Black Trim Ring
#41300P Kit with SS, White and Black Trim Rings
---------------------------------------------------------
COOL WHITE LEDs:
6 x 0.5 Watt Cool White LED
242 Lumens
12 Volt - 2.2 Watt
Amps: 0.183@12V
IP67
FLUSH / RECESSED MOUNT:
#41420P 316 Stainless Steel Trim Ring
#41421P White Trim Ring
#41422P Black Trim Ring
#41301P Kit with SS, White and Black Trim Rings
---------------------------------------------------------
DUAL COLOR WARM WHITE/BLUE:
6 x Warm White LED
6 x TOP Blue LED
12 Volt - (White 2.2 Watt) (Blue 0.45 Watt)
Amps: (Warm White 0.18@12V) (Blue 0.038@12V)
3-Wire
IP67
FLUSH / RECESSSED MOUNT:
#41376P 316 Stainless Steel Trim Ring
#41377P White Trim Ring
#41394P Black Trim Ring
#41302P Kit with SS, White and Black Trim Rings
-------------------------------------------------------
DUAL COLOR WARM WHITE/RED:
6 x Warm White LED
6 x TOP Red LED
12 Volt - (White 2.2 Watt) (Red 0.45 Watt)
Amps: (Warm White 0.18@12V) (Red 0.04@12V)
3-Wire
IP67
FLUSH / RECESSED MOUNT:
#41386P 316 Stainless Steel Trim Ring
#41385P White Trim Ring
#41395P Black Trim Ring
#41303P Kit with SS, White and Black Trim Rings
-
